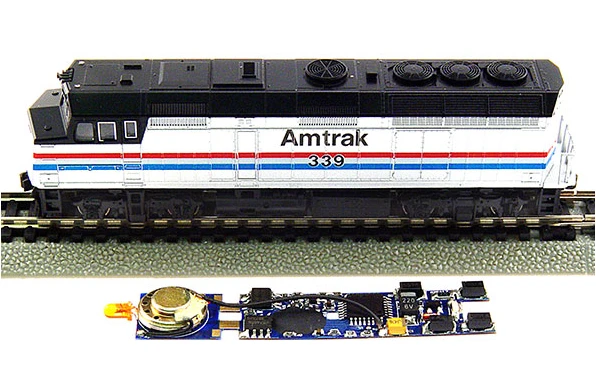

MRC 1810 N DROP-IN SD DECODER KAT F40PH, N Scale

Taking miniaturization and MRCs industry leading technology to the limit, both
of these DCC/DC sound decoders are 100% drop-in! The most simple,
straight-forward, N-Scale installation imaginable. Remove the loco body, lift
out the factory circuit board and replace with the MRC sound decoder /speaker
combo, put the body back on. No wiring needed.


The decoder is equipped with MRCs world renowned Brilliance sound,
miniaturized to a single drop-in decoder with included super-fidelity speaker,
thats virtually plug n play. MRCs true, live capture, full fidelity sound
including diesel rumbles, actually recorded (railside) by MRCs Sound Engineers
from real diesel locomotive prime movers. Just imagine all28
NMRA available functions, and naturally, MRC makes available (33) horns,
eight-bells, brakes, air releases, pop valves, cooling fans, coupling sounds and
more. Directional lighting is included tooto
give life to your Kato N-Scale locos.

Features:

•
  Four types of synchronized diesel prime mover sounds to choose from

•
  0.75 amp capacity

•
  34 different types of horns and 8 types of bells

•
  Programmable individual sound volumes

•
  Programmable either 2-digit or 4-digit addresses

•
  Programmable start voltage and top voltage

•
  Programmable acceleration and decelaration rates

•
  Programmable 14, 28, 128 speed steps

•
  Supports full read back of CVs

•
  Selectable factory default speed curve

•
  Advanced speed table control CV67-CV94

•
  Kick start voltage control CV65

•
  3 headlight effects: Directional / rule 17 /off-dim-bright cycle.

•
  28 accessory functions (F1-F28)

•
  Supports advanced consisting (CV19)

•
  Supports programming on the main (OPS mode)

•
  Compatible with NMRA DCC standards

•
  Complies with Part 15 of FCC regulations

•
  13mm, 32 ohm speaker included

•
  PCB size: 66mm x 14mm x 3.5mm

•
  Directly replaces Kato F40 circuit board

  Resources to Download:

  1.)

  0001810
  manual
