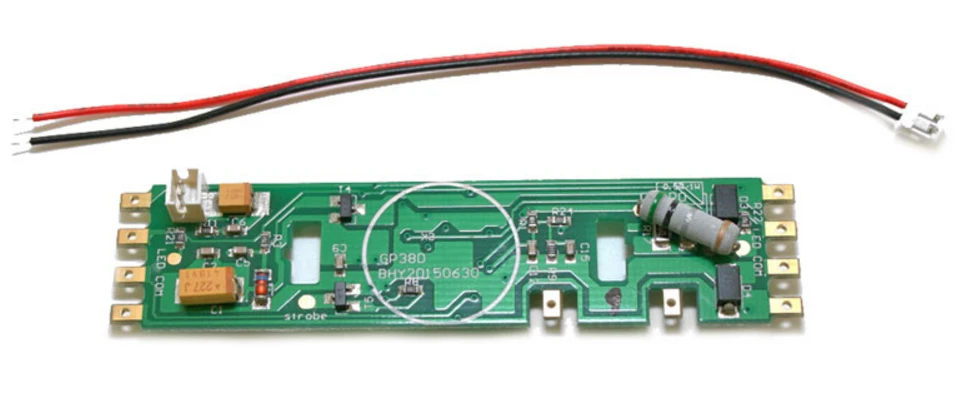

MRC 111703 16bit DROP-IN DECODER EMD 710

00111703 replaces 0001621

High quality/Affordable drop-in decoder designed to replace the original
PC board.*

Suitable forSD60
Series, SD70 Series, SD75 Series, GP59, GP60 Series, SD80, SD90

Drop In EMD710

•
  1 Synchronized Prime Mover sound
•
  16 Bit
•
  1.5 amp capacity with overload/over-voltage protection
•
  3 accessory lights
•
  4 Horns & 4 Bells
•
  Adjustable master and 10 individual sound volumes (16 levels)
•
  Programmable either 2-digit or 4-digit addressing
•
  Programmable start voltage and top voltage
•
  Programmable acceleration and deceleration rates
•
  Programmable 14, 28, 128 speed steps
•
  Excellent slow speed control & Adjustable Back-EMF load control with
  adaptive PID control
•
  User controlled service & dynamic brakes with sound
•
  Supports read back address and CV value
•
  Advanced speed table control CV67-CV94
•
  Kick start voltage control CV65
•
  Easy function mapping
•
  17 accessory light effects: including ditch lights, mars light, gyra
  light, strobe light, prime strobe light, and on/off
•
  28 accessory functions (F1-F28)
•
  Supports advanced consisting (CV19)
•
  Supports programming on the main (OPS mode)
•
  2 pin speaker connector included
•
  Does not include speaker

Compatible with NMRA DCC standards

Complies with Part 15 of FCC Rules

Dimensions: 73.4mm x 17.8mm x 7.7mm

*Drop-in
decoders may require some modification to locomotive.
