Digitrax EVO Evolution Advanced 5A/8A Starter Set-

Everything you need to get started with Advanced Digitrax Command Control. Evolution is perfect for most home and club layouts.

Everything you need to get started with Advanced Digitrax Command Control.

Evolution is perfect for most home and club layouts.

It offers excellent speed control, prototypical consisting, the full range of
programming features and much more.

Maximum capacity, maximum features. Take it to the Max with Evolution!

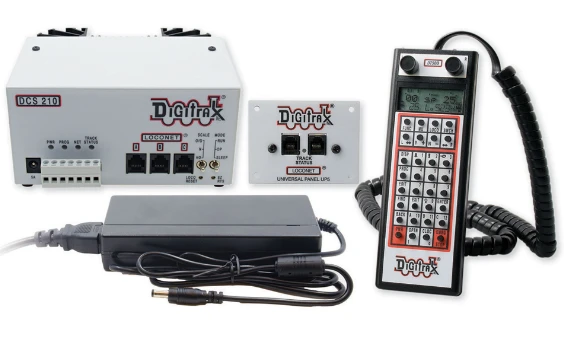

Evolution Set Includes:

• DCS210 Command Station/Booster With Intelligent AutoReverse
• DT500 Super LocoNet Throttle (Infra ready)
• UP5 Universal Panel
• PS615 Power Supply
• One LT1 LocoNet Cable & Decoder Test Kit
• Evolution Manual
• Digitrax Decoder Manual

The DT500 Advanced Super Throttle & DCS210 Advanced Command Station
Offers

• User interface makes DCC simple.
• Dual throttle knobs give you control of two locos at the same time and
  makes consisting easy.
• Full numeric keypad for loco selection, function control, and decoder
  programming.
• Simplified 4 digit addressing.
• Easy address browsing and selection.
• User-friendly text messages to guide you.
• Click encoders for smooth speed control.
• Multi-line LCD display puts all information at your fingertips.
• Convenient step-by-step throttle option set up
• Infra-ready out of the box (with UR90 sold separately).
• Ready for transponding and cab signaling.
• Simplified throttle option setup.

Big System Capacity for Big Layouts

• Run up to 100 addresses at the same time on your system.
• Run up to 100 throttles at the same time on your system.

Over 9000 Locomotive Addresses

• Address 00 for operation of one loco or MU consist without decoders
• Two Digit Addressing is easy to use. (Address 01-127)
• Four Digit Addressing lets you use the road number of your engines as
  their addresses. (Address 0128-9000+)

5 or 8 Amps of Power to Run More Trains

• Selectable Scale Voltage for Safe Operation in ALL Scales
• Customizable Voltage Settings
• 5 amps of power with included PS615 power supply
• 8 amps with PS2012 power supply (sold separately)

Function Control

• Control 30 functions (F0Fwd, F0Rev, and F1-F28).
• Function 2 is a special non-latching key that can be used to sound the
  horn for as long as the key is held down.
• Constant brightness lighting. Headlights can be directional or
  independently controlled (depending on decoder capabilities).

Two DCC Outputs are Better than One!

• Use one output for programming decoders while the other runs the layout.
  No need to shut down the layout to program decoders!
• Use one output for a braking section while the other runs the layout.

Decoder Programming

• Built in read/write programmer lets you program and read back CV values.
• Supports Paged programming (Digitrax preferred method). Also supports
  direct, register and ops mode programming

Consisting

• Supports Universal consisting (Digitrax preferred method). Allows ALL
  locos to be consisted prototypically, even analog locos.
• Advanced consisting and Basic consisting, too!
• Nested consisting where consists can be consisted together.

Stationary Decoders, Turnout Control & Turnout Position Reporting

• Access to stationary decoder control for turnouts and other devices.
• DT500 reports turnout position based on last command sent.
• Control 2000+ stationary decoder addresses.

Routes

• Turnout List/Route capability to simplify complex yard operations.
• EZ routes button for simplified Command Station route programming

Customizable System Options

• Turn audible warnings on or off.
• Set up purging options.
• Multi-format command station mode.
• Loco Reset button for easy system purging

UP5 Universal Panel

• Makes LocoNet hook up simple!
• 2 LocoNet jacks for hooking up your LocoNet network.
• 3 throttle jacks for hooking up throttles and other non-RailSync devices.

Expandability

• Evolution is just the beginning for large, complex layouts that emphasize
  prototypical operations.
• With LocoNet you can add more boosters, throttles, power management,
  detection, transponding, signaling and much more.
• DCS210 comes with 3 LocoNet ports for Easy expandability

Other Advanced Features

• IPL updatable firmware for continued product improvements
• Device Query and Device Statistics to help with troubleshooting
• Input Mode to help set up detection on your layout
• Uses Expanded slots

International versions available for

• Australia
• European Union
• Germany
• Ireland
• New Zealand
• South Africa
• United Kingdom
