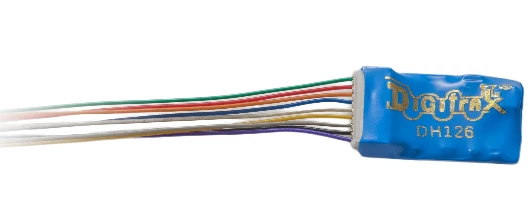

Digitrax 6036 DH126D 1.5 Amp Economy, HO Scale

• .672 x 1.074 x .259

  17.08mm x 27.28mm x 6.6mm

• Digitrax Easy Connect 9 Pin Harness
• 1.5 Amp/2 Amp Peak Current Rating
• 2 FX³Functions, 0.5
  Amp Total Function Current Rating

▪FX³Function
outputs for prototypical lighting effects and on/off control:
Constant Brightness Lighting with directional or independent
control.
Realistic Effects like Ditch lights, Mars lights, strobes, and many
more

FX³& Standard
Function Qualifiers operate functions based on direction,

F0 on or off, direction and F0, and whether loco is moving.

FX³effects optimized
for selectable LED or lamp operation

Configurable FX³Pulse
Function available on all function outputs.

Function Remapping for custom function setup.

Master Light Switch turns off all lights & functions with one keystroke.

Advanced Consist Function Controls

▪Digitrax LocoMotion^{ÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃÃî}System-Your
locomotives look like the real thing.
The Digitrax LocoMotion
System makes them run like the real thing, too!

Torque Compensation for smooth as silk silent operation.

128 Speed Step operation (14 or 28 steps can also be used).

Momentum with acceleration and deceleration.

Normal Direction of Travel is user selectable.

Switching Speed feature for easier and faster access to yard speeds.

3 Step Speed Tables set start, mid and max voltage for custom control.

28 Step Speed Tables with 256 level resolution for precise control.

▪Program CVs using any Digitrax Compatible Control system without having
to buy any extra equipment.
▪Series 6 Decoder Features.
▪2 Digit and 4 Digit Addressing.
▪Basic, Advanced & UniVersal Consisting.
▪SuperSonic motor drive for silent operation.
▪Direct mode programming.
▪Decoder Reset CV with or without speed table reset.
▪Transponder Equipped ready for transponding on your Layout.
▪Motor Isolation Protection helps prevent damage to your decoder.
▪DCC Compatible.
▪FCC Part 15, Class B RFI compliant.
▪Digitrax No Worries Warranty.

Specifications
